Cadmate 2024

Project Image

New Functionalities


A navigation cube is displayed in 2D or 3D model space, which allows easily switching between standard and isometric views.


By using Visual Studio Code with CADMATE 2023, you can edit and debug lisp files conveniently.


With this new feature, you can synchronize one or more layout viewports to a master layout viewport to have the exact locations match up.


Marks unclosed endpoints among select lines, polylines or arcs and supports to close them.


Clips or removes specified portions of blocks,Xref drawings, images and wipe-out objects by defining polyline, circle, arc, ellipse, text, mtext, or attribute definition as clipping boundaries.


The SYSVARMONITOR command monitorsa list of system variables and sends notifications when any one of them changes. There are some system variables already in the monitor by default, which you can add or remove in the “edit system variable list” dialog box.


Editsthe textual contents of an attribute within a block.


Merges specific layouts into a single layout.


Two digital signature features are provided to offer reliable information and validate the authenticity and integrity of drawings.


The DIGITALSIGN command attaches a digital signature to a drawing which can provide reliable information of the origin, identity and status on adrawing file.

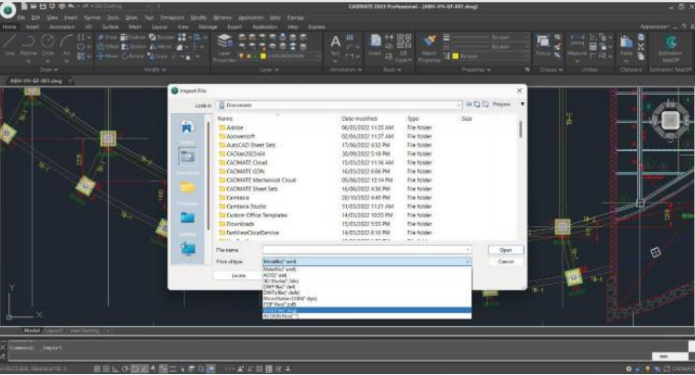

SVG: In CADMATE 2024, (Scalable Vector Graphics) files are available to be imported and exported.



The imported SVG graphics is a block,which can be edited directly after being exploded or be edited in the Block Editor. Objects like lines, polylines, polygons,circles, ellipses, path, text and hatch can be imported correctly.


Almost all kind of objects in a drawing can be exported as a SVG file. And the exported SVG file can be displayed accurately in third-party tools.
